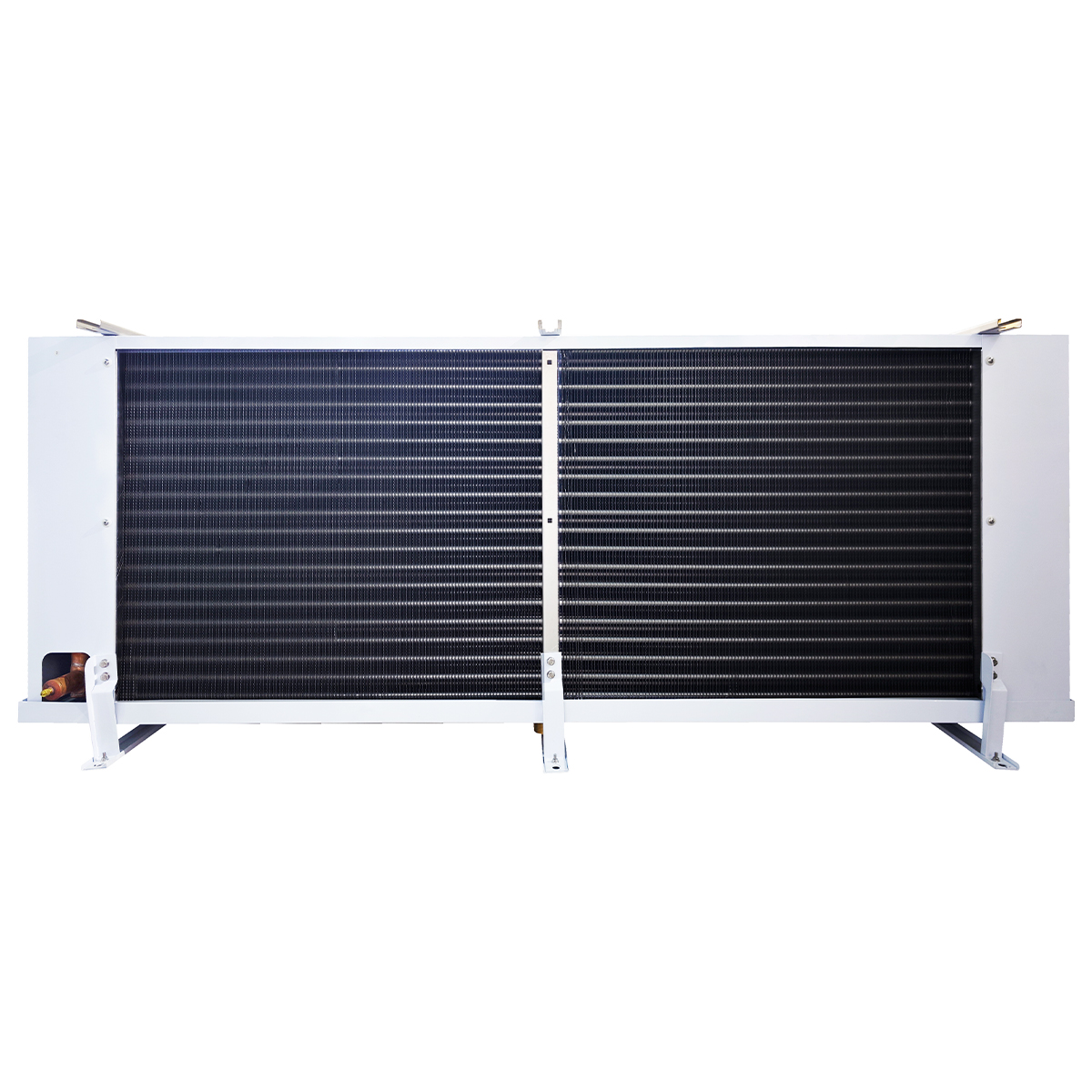

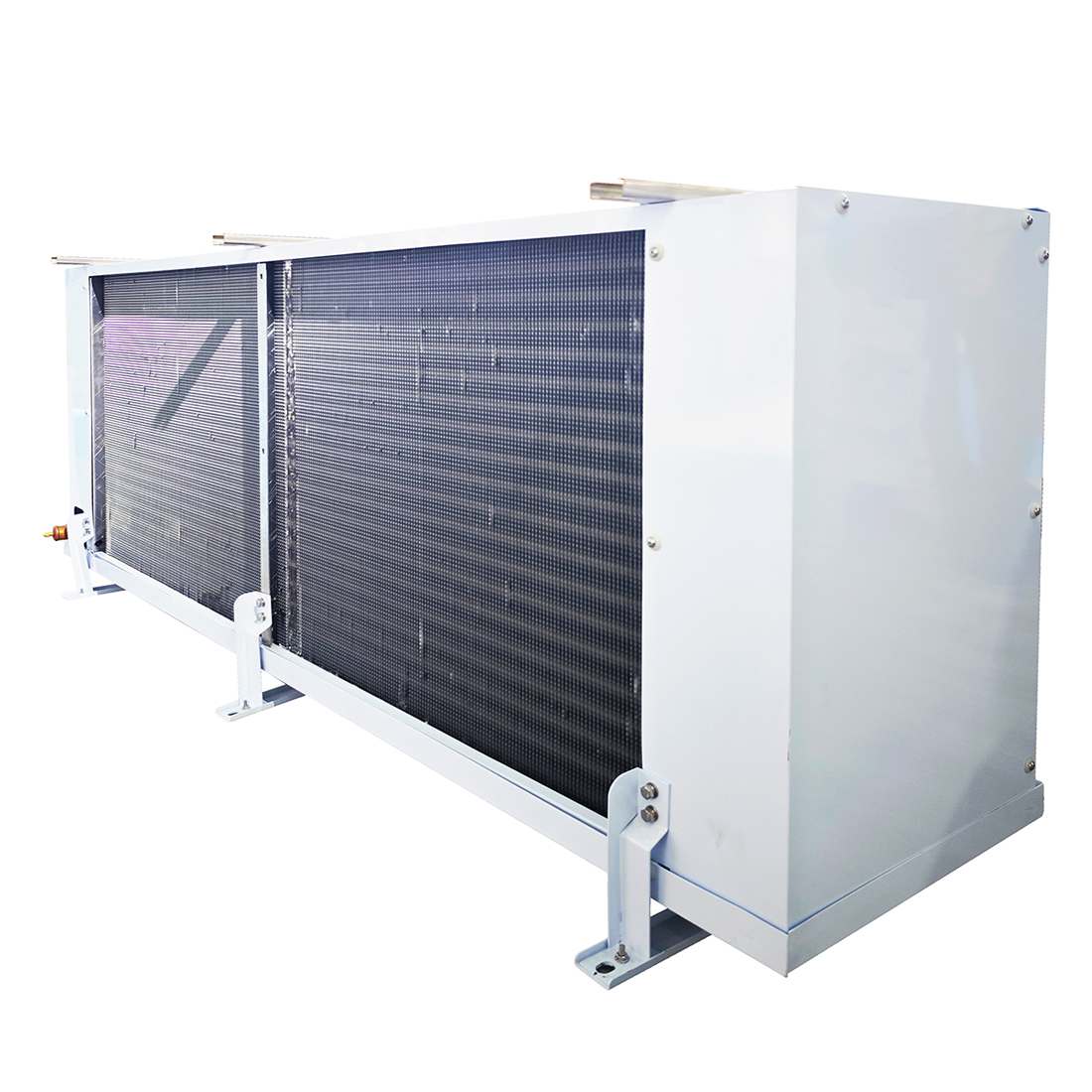

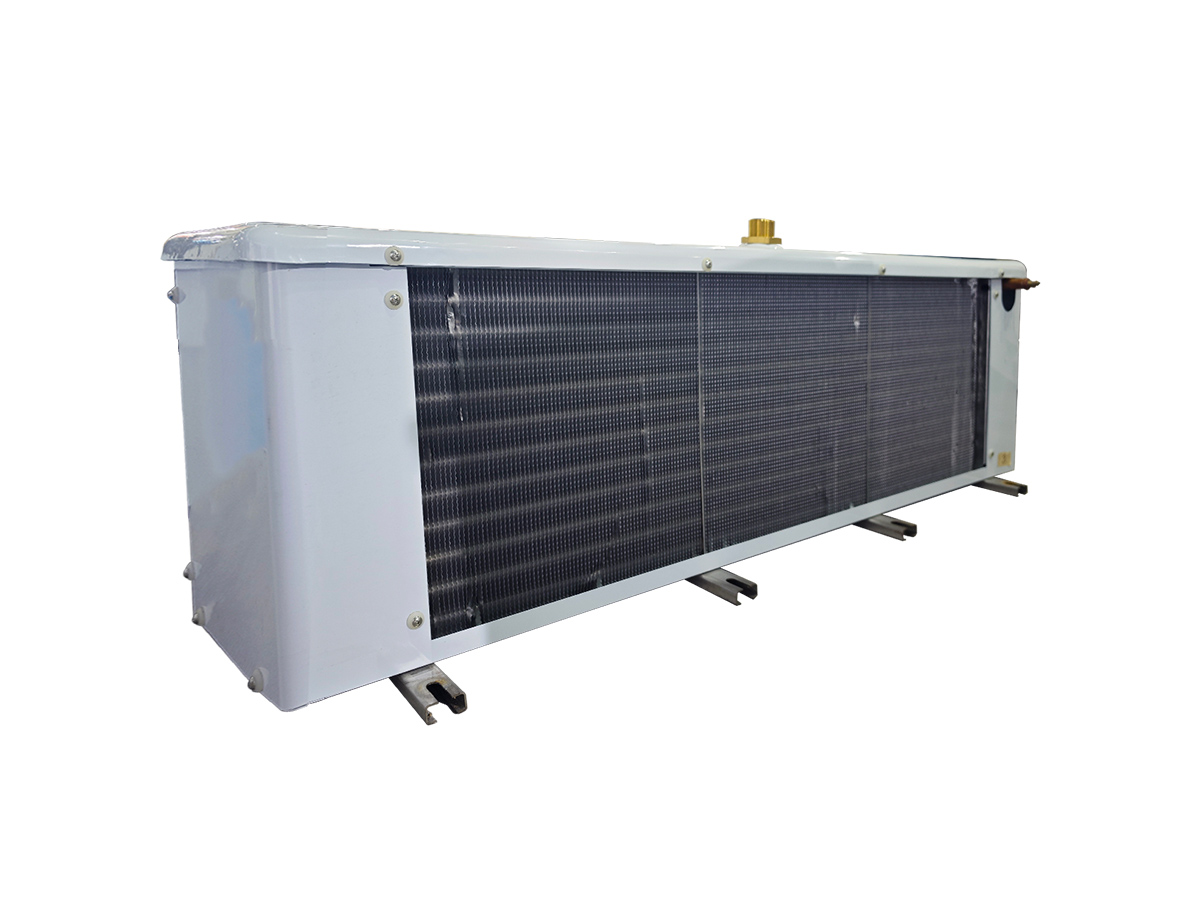

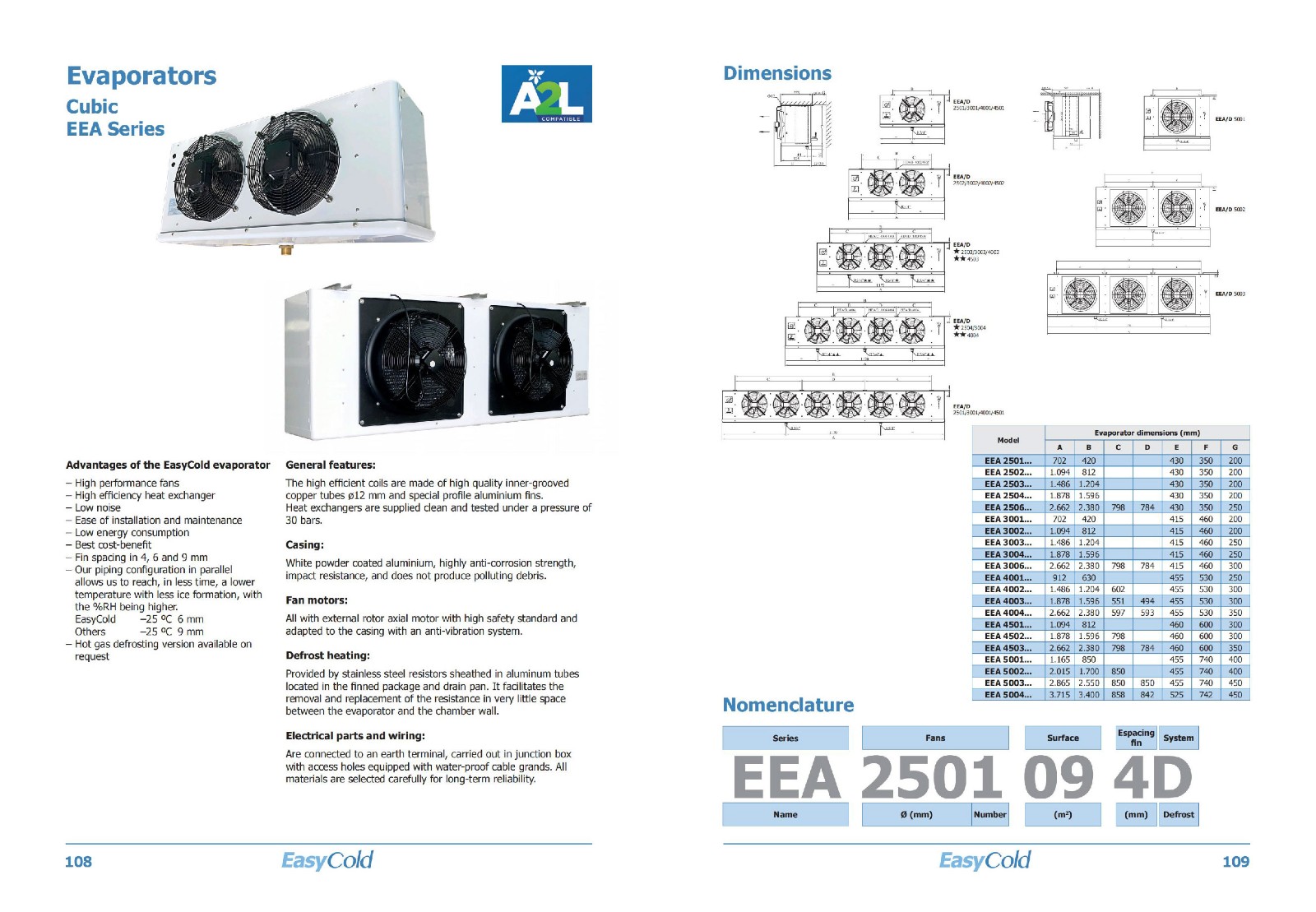

Advantages of the EasyCold evaporator
High performance fans
High efficiency heat exchanger
Low noise
Ease of installation and maintenance
Low energy consumption
Best cost-benefit

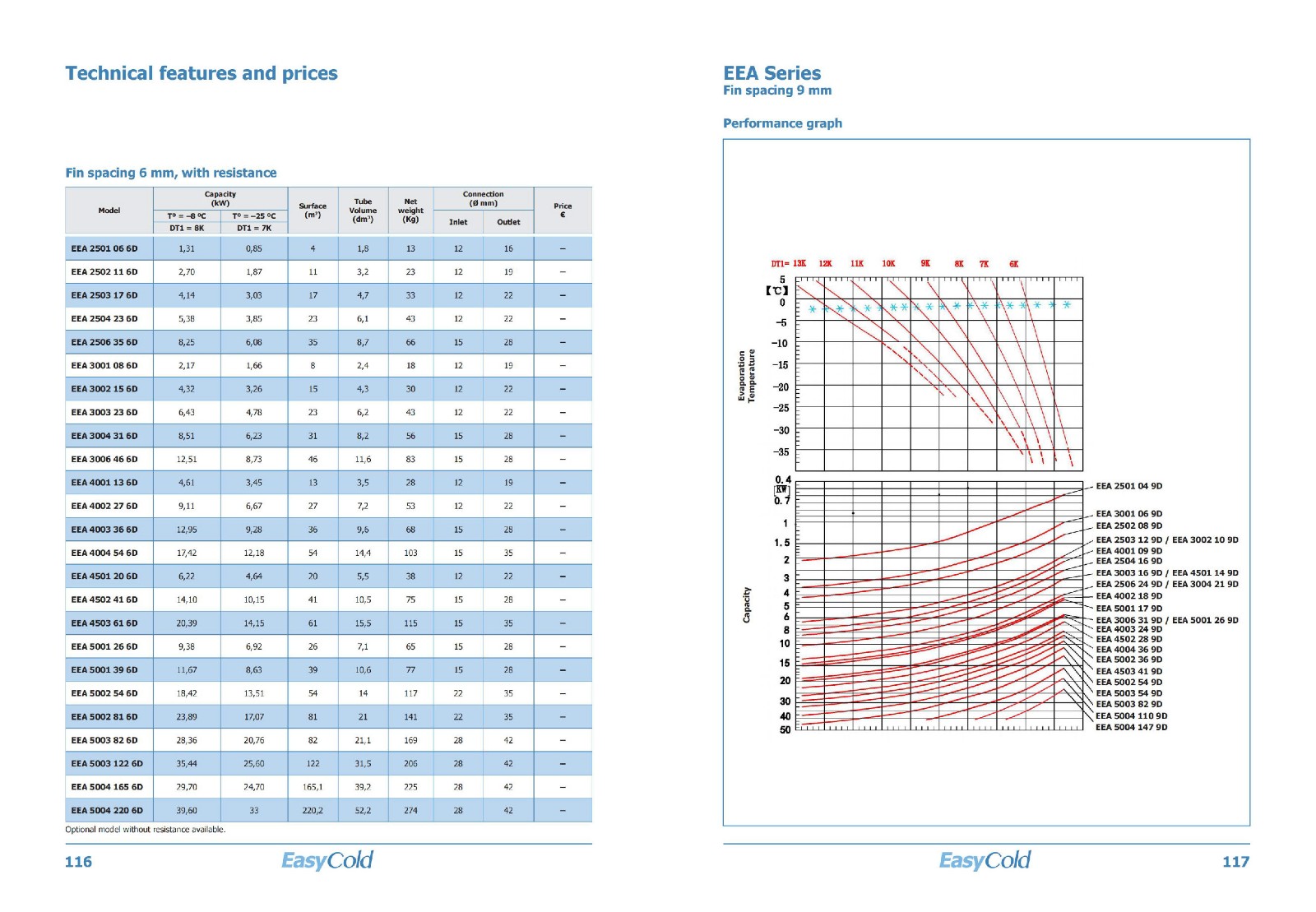

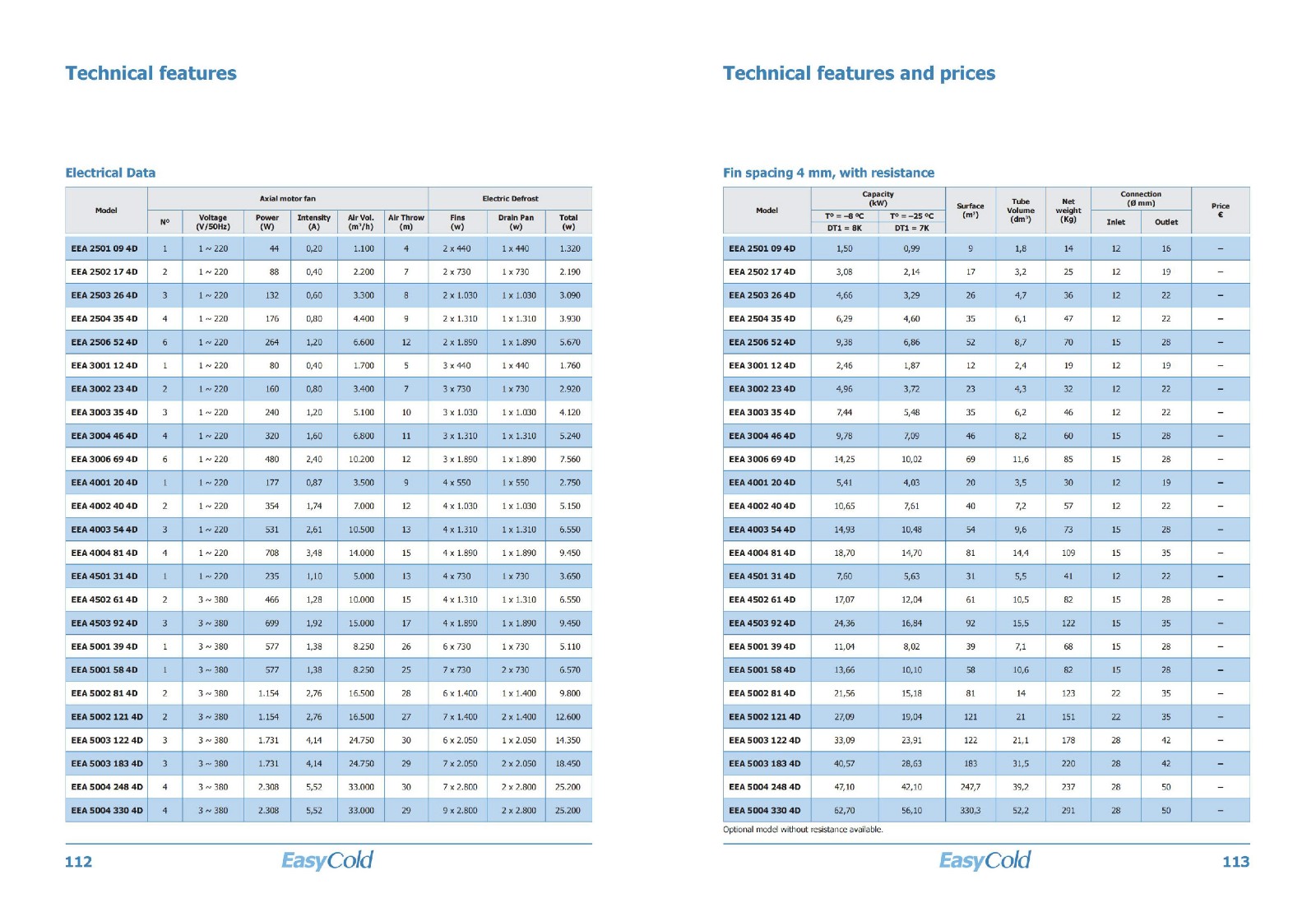

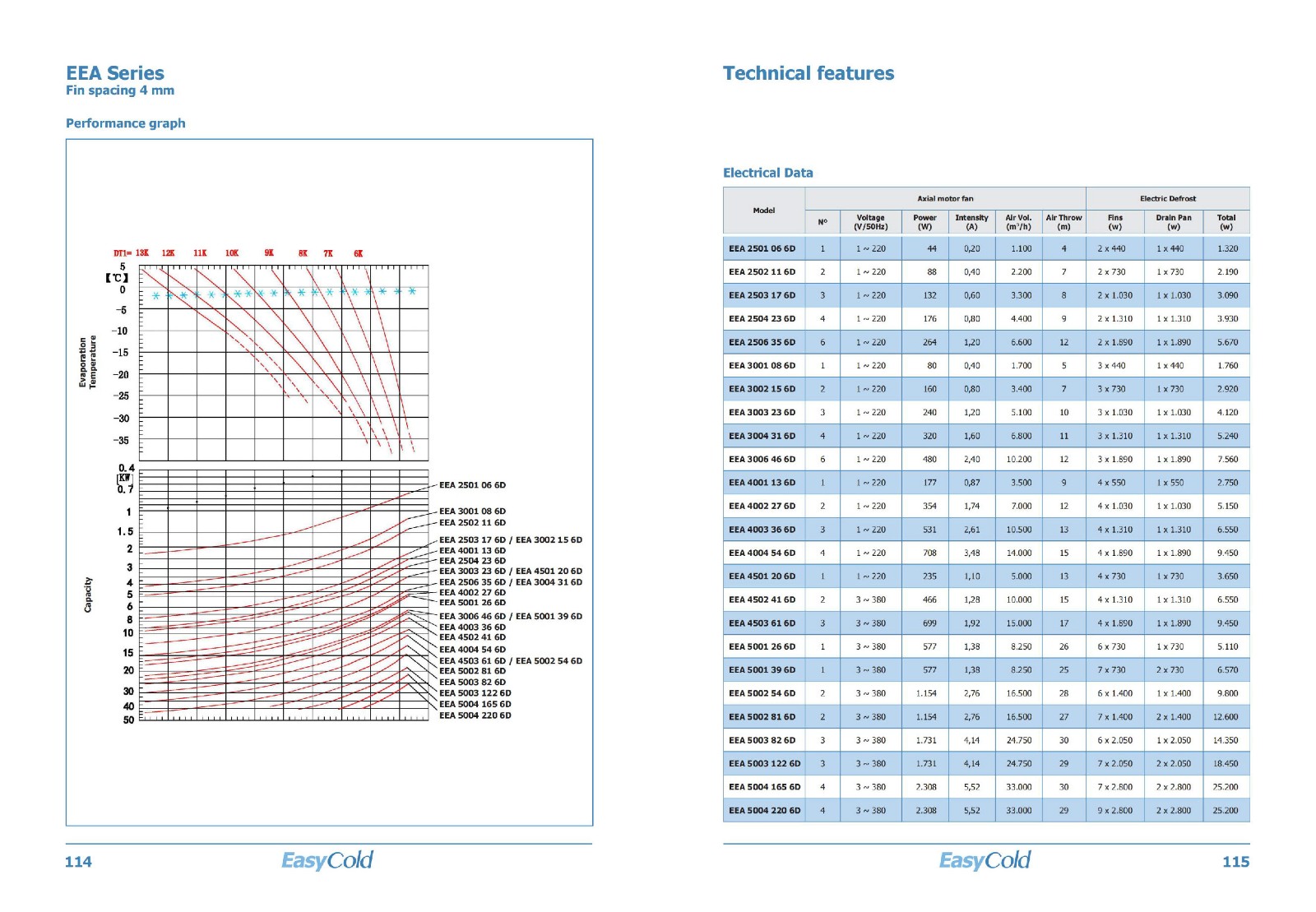

Fin spacing in 4, 6 and 9 mm
Our piping configuration in parallel allows us to reach, in less time, a lower temperature with less ice formation, with the %RH being higher.EasyCold –25 ºC 6 mm Others –25 ºC 9 mm
Hot gas defrosting version available on request

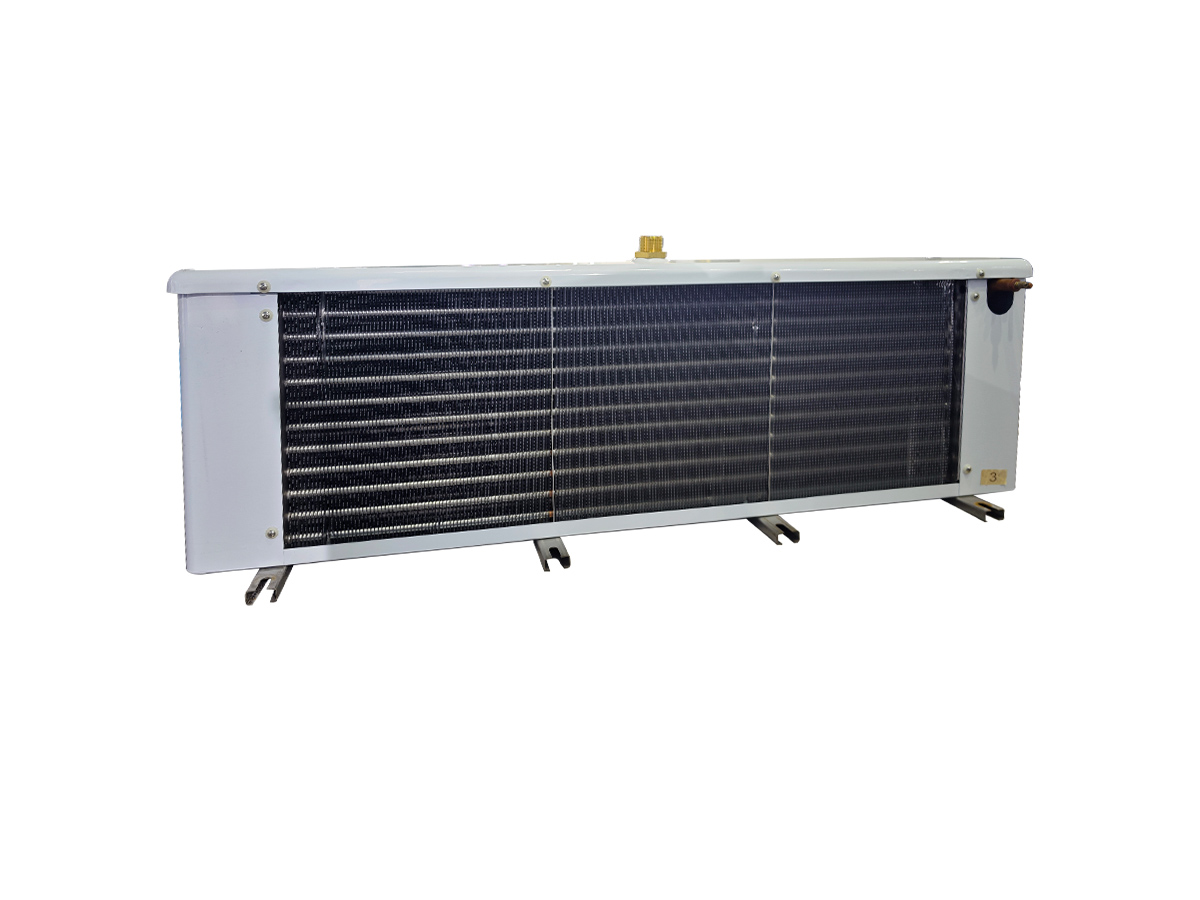

General features:The high efficient coils are made of high quality inner-grooved copper tubes ø12 mm and special profile aluminium fins.
Heat exchangers are supplied clean and tested under a pressure of 30 bars.
Casing:White powder coated aluminium, highly anti-corrosion strength, impact resistance, and does not produce polluting debris

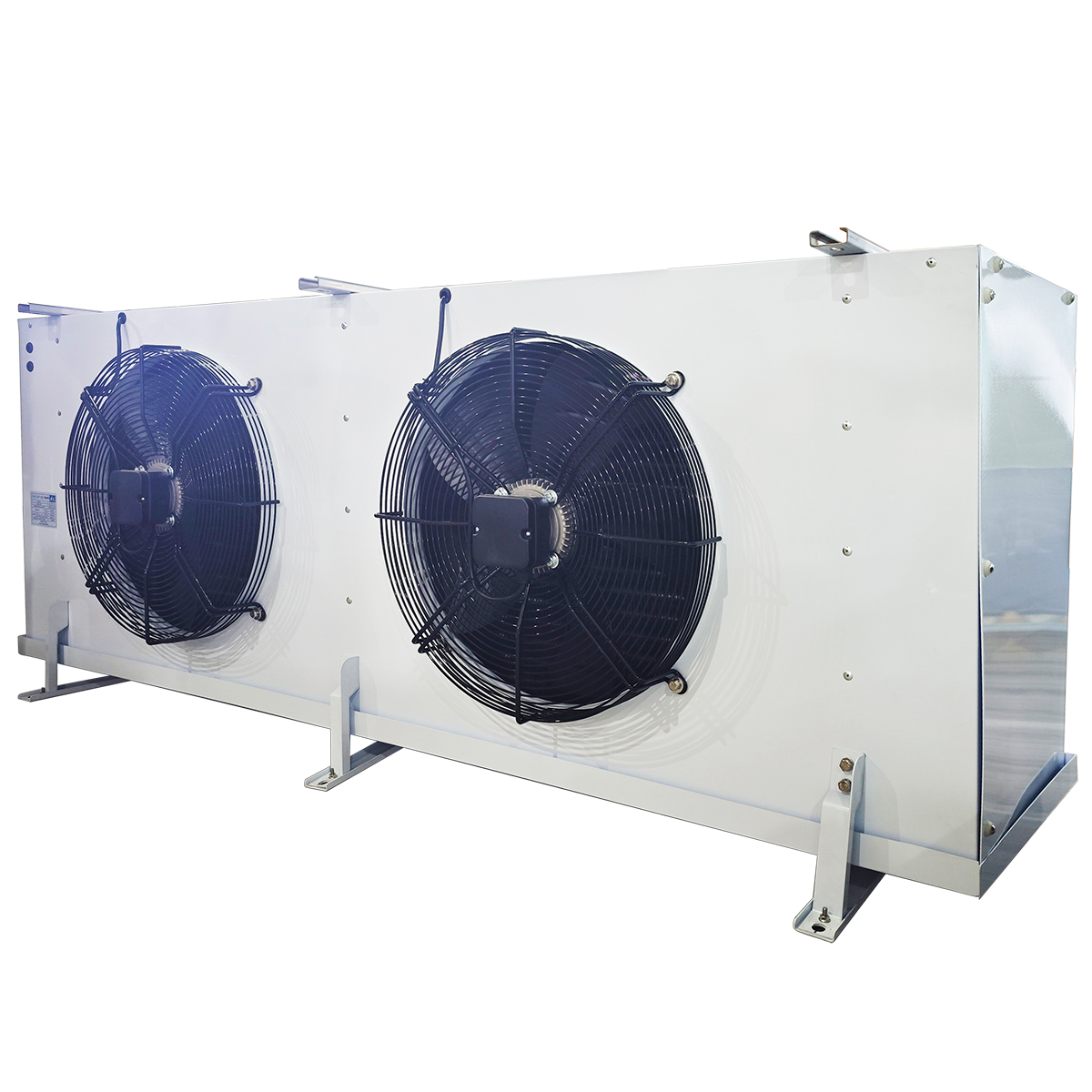

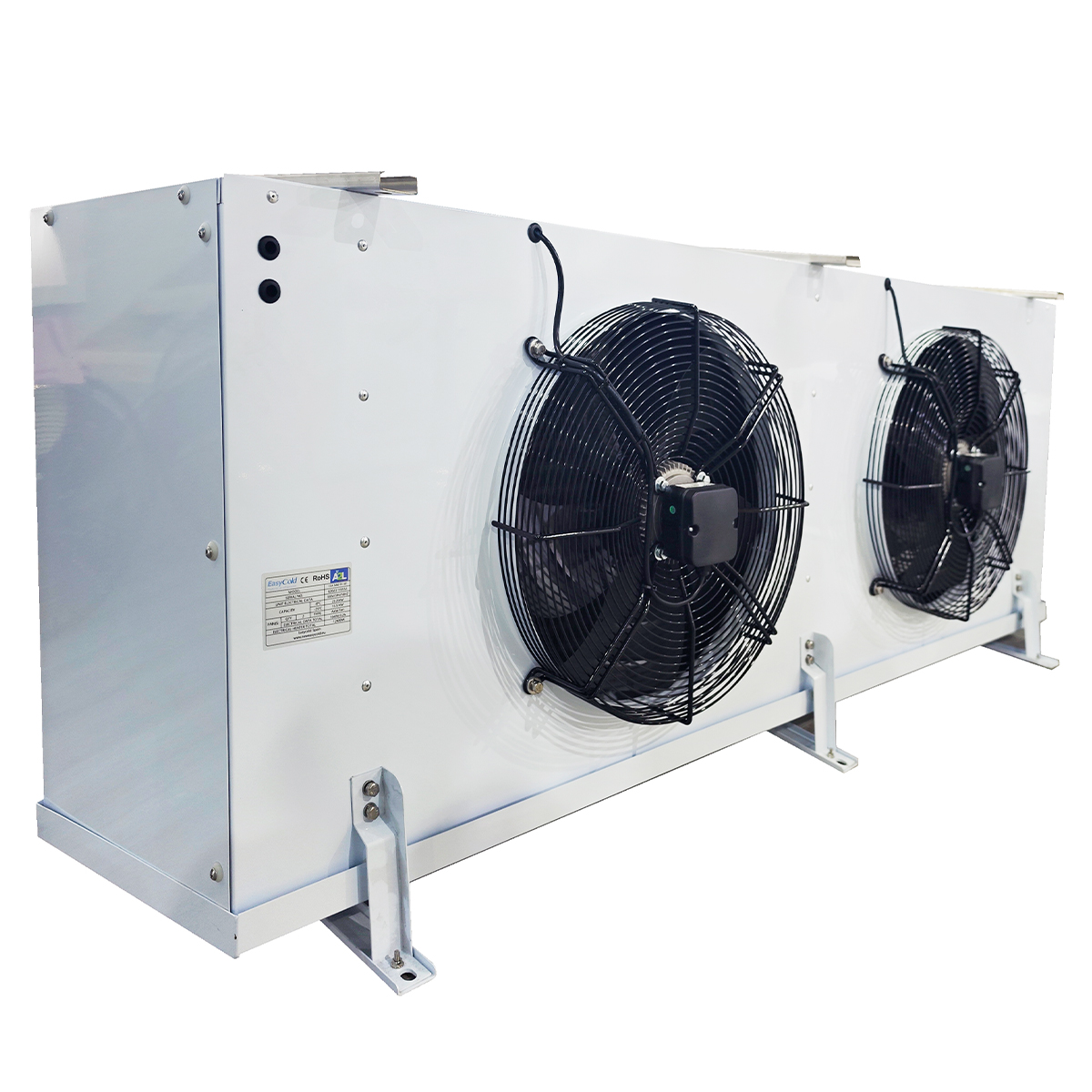

Fan motors:All with external rotor axial motor with high safety standard and adapted to the casing with an anti-vibration system.

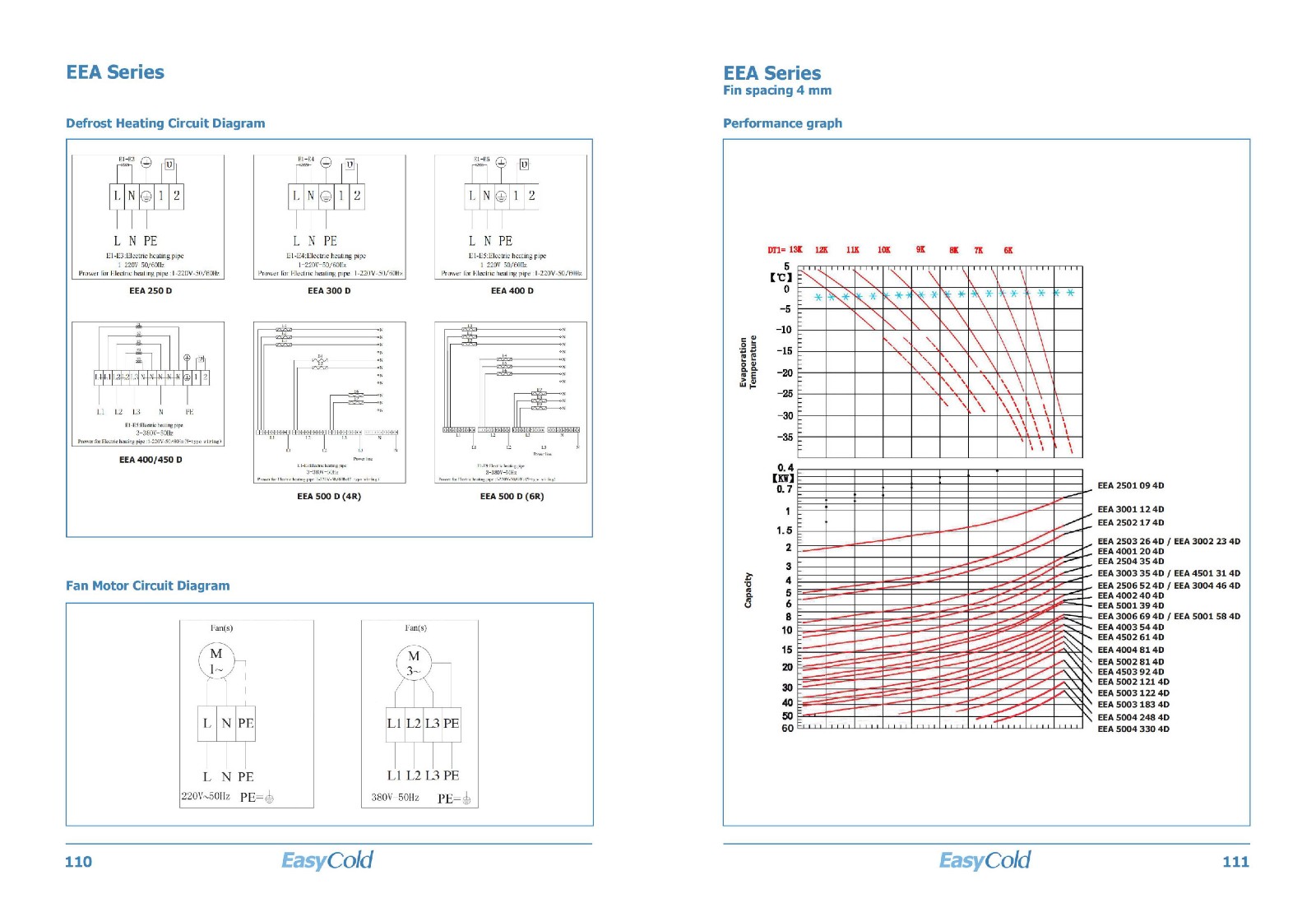

Defrost heating:Provided by stainless steel resistors sheathed in aluminum tubes located in the finned package and drain pan. It facilitates the removal and replacement of the resistance in very little space between the evaporator and the chamber wall.
Electrical parts and wiring:Are connected to an earth terminal, carried out in junction box with access holes equipped with water-proof cable grands. All materials are selected carefully for long-term reliability.
